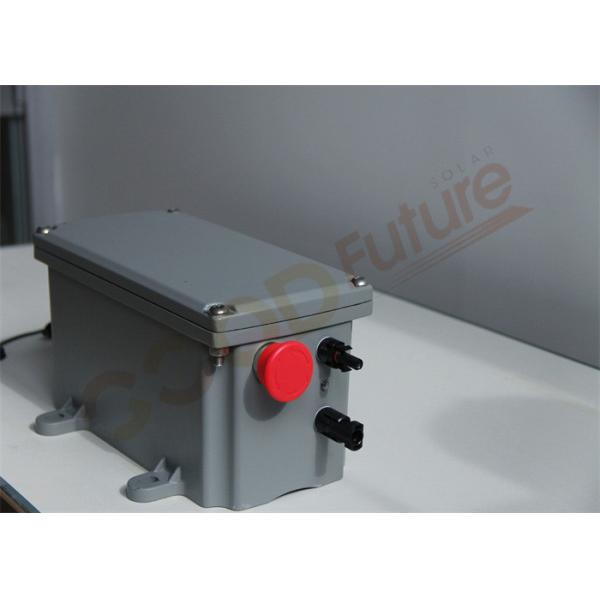

Smart Horizontal Single Axis Tracker Controller
Working principle:
Horizontal single axis tracker controller means that PV modules are
mounted on a horizontal axis and track the sun in the east-west
direction along the horizontal axis.
Our solar sun tracker choose the slew drive, enabling each row to
be independently controlled by its own motor with the tracking
method ‘Astronomical algorithm + closed-loop control’. making the
system accurate and reliable, real-time closed-loop feedback
tracking angle, automatic tracking, without human intervention.
Solar tracker controller is a system that tests and optimizes the
tracking accuracy of single-axis solar trackers. It accurately
monitors second by second the inclination of PV modules,
analytically calculates the deviation from the optimal tilt, and
generates the tilt-correction parameters delivering optimized
alignment and maximized energy production.
Technical Parameters of Smart Horizontal Single Axis Tracker
Controller
| Technical parameters |
| Tracking Range | ±60º |
| Tracking Accuracy | ±1º |
| Driving System | Slewing Drive |
| Power Consumption | 0.2~0.5kWh/Day |
| Lithium Battery | 6Ah |
| Data Transmission | Zigbee&Lora |
| Installation | Toque Tube |
| IP Grade | IP65 |
| Max. Working Wind Speed | 20m/s |
| Wind Protection | Yes |
| Snow Mode | Yes |
| Cleaning Mode | Yes |
| Backtracking | Yes |
| Communication Options | LoRa wireless /RS 485 cable |
| Night Position | Yes |
Advantage:
1. Minimum O&M work due to the reduced amount of component,
simplicity and robustness.
2. Minimum maintenance.
3. Lubrication free rotation elements.
4. High operation reliability.
5. Alarm management fully configurable by customer.
6. Backtracking Algorithm, avoiding shadows and increasing
production.
7. Easy integration into the plant’s communications system
8. Wireless communication system with Zigbee®.
9. Remote monitoring and predictive maintenance.
10. Quick commissioning.
11. Wide range of motion: 120°(± 60°).
12. Minimum number of drives for every MWp installed.
13. Minimum energy consumption.
Functions:
1. System check function
Real-time display of the current working status of the system;
2. Power off protection function
The system data can be saved without loss after power failure.
3. Information collection function
Real-time acquisition of component tilt Angle; Real-time
acquisition of weather conditions, coordinate position, altitude,
time and other information;
4. High function of extreme weather monitoring
When encountering extreme weather, the system will automatically
judge and execute the corresponding evasive action to protect the
safety of the bracket and components;
5. Backtracking function
Reduces shading and maximizes power generation;
6. Night reset function
At night, the components are restored to the initial maximum wind
resistance state, and the errors caused by the day's operation are
eliminated to ensure the accuracy of the entire tracking system;
